sista::Pawn Class Reference

Represents an object on the field with a symbol, coordinates, and ANSI settings. More...

#include <pawn.hpp>

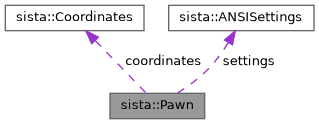

Collaboration diagram for sista::Pawn:

Public Member Functions
	Pawn (char, const Coordinates &, const ANSISettings &)
	Constructor to initialize the pawn with a symbol, coordinates, and ANSI settings.
virtual	~Pawn ()
	Virtual destructor.
void	setCoordinates (const Coordinates &)
	Sets the coordinates of the pawn.
void	getCoordinates (Coordinates &) const
	Gets the coordinates of the pawn.
Coordinates	getCoordinates () const
	Gets the coordinates of the pawn.
void	setSettings (const ANSISettings &)
	Sets the ANSI settings of the pawn.
void	getSettings (ANSISettings &) const
	Gets the ANSI settings of the pawn.
ANSISettings	getSettings () const
	Gets the ANSI settings of the pawn.
void	setSymbol (char)
	Sets the symbol of the pawn.
char	getSymbol () const
	Gets the symbol of the pawn.
virtual void	print () const
	Prints the pawn to the terminal with its associated ANSI settings.

Protected Attributes
char	symbol
Coordinates	coordinates
ANSISettings	settings

Detailed Description

Represents an object on the field with a symbol, coordinates, and ANSI settings.

The Pawn class encapsulates a character symbol, its position on the field using Coordinates, and its appearance using ANSISettings. It provides methods to set and get these properties, as well as a method to print the pawn to the terminal with its associated ANSI settings.

The Pawn class is designed to be subclassed for specific types of pawns with additional behavior. Examples of subclasses could include players, enemies, or items in a videogame.

Note

Pawns do not manage their own movement; this is handled by the Field class.

See also

Coordinates

ANSISettings

Field

Constructor & Destructor Documentation

Pawn()

sista::Pawn::Pawn	(	char	symbol_,
		const Coordinates &	coordinates_,
		const ANSISettings &	settings_
	)

Constructor to initialize the pawn with a symbol, coordinates, and ANSI settings.

The ANSI settings for the pawn

Parameters

symbol_	The character symbol for the pawn.
coordinates_	The Coordinates representing the pawn's position on the field.
settings_	The ANSISettings for the pawn's appearance.

~Pawn()

virtual sista::Pawn::~Pawn ( )

inlinevirtual

Virtual destructor.

Member Function Documentation

getCoordinates() [1/2]

Coordinates sista::Pawn::getCoordinates

(

)

const

Gets the coordinates of the pawn.

Returns

The Coordinates of the pawn.

getCoordinates() [2/2]

void sista::Pawn::getCoordinates

(

Coordinates &

coordinates_

)

const

Gets the coordinates of the pawn.

Parameters

coordinates_

A reference to a Coordinates object to store the pawn's coordinates.

getSettings() [1/2]

ANSISettings sista::Pawn::getSettings

(

)

const

Gets the ANSI settings of the pawn.

Returns

The ANSISettings of the pawn.

getSettings() [2/2]

void sista::Pawn::getSettings

(

ANSISettings &

settings_

)

const

Gets the ANSI settings of the pawn.

Parameters

settings_

A reference to an ANSISettings object to store the pawn's settings.

getSymbol()

char sista::Pawn::getSymbol

(

)

const

Gets the symbol of the pawn.

Returns

The character symbol of the pawn.

print()

void sista::Pawn::print ( ) const

virtual

Prints the pawn to the terminal with its associated ANSI settings.

This method applies the pawn's ANSI settings (foreground color, background color, and attribute) and then prints the pawn's symbol to the terminal. The settings will be visible on characters printed after this call until they are reset or changed.

See also

ANSISettings::apply

setCoordinates()

void sista::Pawn::setCoordinates

(

const Coordinates &

coordinates_

)

Sets the coordinates of the pawn.

Parameters

coordinates_

The new Coordinates for the pawn.

setSettings()

void sista::Pawn::setSettings

(

const ANSISettings &

settings_

)

Sets the ANSI settings of the pawn.

Parameters

settings_

The new ANSISettings for the pawn.

setSymbol()

void sista::Pawn::setSymbol

(

char

symbol_

)

Sets the symbol of the pawn.

Parameters

symbol_

The new character symbol for the pawn.

Note

The symbol should be a printable character.

This method is a sheer setter, it does not handle reprinting the pawn on the field.

Member Data Documentation

coordinates

Coordinates sista::Pawn::coordinates

protected

The character symbol representing the pawn

settings

ANSISettings sista::Pawn::settings

protected

The coordinates of the pawn relatively to the field

symbol

char sista::Pawn::symbol

protected

---

The documentation for this class was generated from the following files:

• include/sista/pawn.hpp
• include/sista/pawn.cpp
