Implementation of the C API for Sista. More...

#include <sista/api.h>
#include <sista/sista.hpp>
#include <stdexcept>

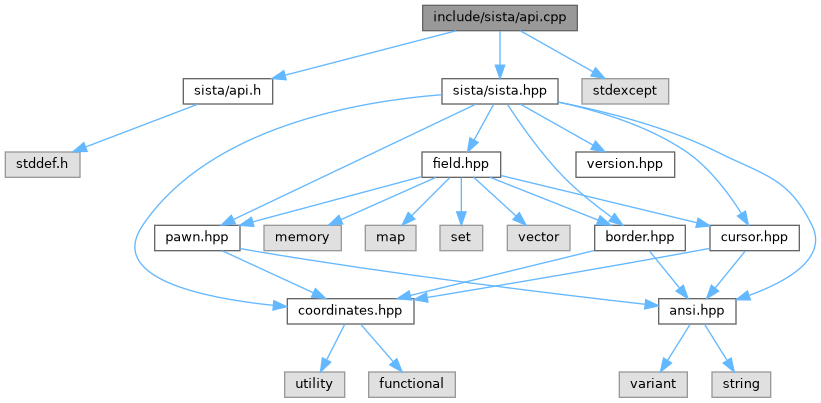

Include dependency graph for api.cpp:

Functions
static void	sista_set_last_error (int code, const char *message)

static void	sista_clear_last_error ()

FieldHandler_t	sista_createField (size_t width, size_t height)
	Creates a Field with the specified width and height.

int	sista_destroyField (FieldHandler_t field)
	Deallocates the Field from memory.

SwappableFieldHandler_t	sista_createSwappableField (size_t width, size_t height)
	Creates a SwappableField with the specified width and height.

int	sista_destroySwappableField (SwappableFieldHandler_t field)
	Deallocates the SwappableField from memory.

int	sista_printField (FieldHandler_t field, char border)
	Prints the specified Field with a given border.

int	sista_printSwappableField (SwappableFieldHandler_t field, char border)
	Prints the specified Field with a given border.

int	sista_resetAnsi ()
	Resets ANSI settings to default.

int	sista_setForegroundColor (enum sista_ForegroundColor color)
	Sets the foreground color using a predefined color.

int	sista_setBackgroundColor (enum sista_BackgroundColor color)
	Sets the background color using a predefined color.

int	sista_setAttribute (enum sista_Attribute attribute)
	Sets a text attribute.

int	sista_resetAttribute (enum sista_Attribute attribute)
	Resets a text attribute.

int	sista_setForegroundColorRGB (const struct sista_RGBColor *color)
	Sets the foreground color using an RGB color.

int	sista_setBackgroundColorRGB (const struct sista_RGBColor *color)
	Sets the background color using an RGB color.

ANSISettingsHandler_t	sista_createANSISettings (enum sista_ForegroundColor fgColor, enum sista_BackgroundColor bgColor, enum sista_Attribute attribute)
	Creates an ANSISettings object.

ANSISettingsHandler_t	sista_createANSISettingsRGB (struct sista_RGBColor fgColor, struct sista_RGBColor bgColor, sista_Attribute attribute)

int	sista_destroyANSISettings (ANSISettingsHandler_t settings)
	Deallocates the ANSISettings from memory.

int	sista_applyANSISettings (ANSISettingsHandler_t settings)
	Applies the ANSI settings to the terminal.

BorderHandler_t	sista_createBorder (char symbol, ANSISettingsHandler_t settings)
	Creates a Border object.

int	sista_destroyBorder (BorderHandler_t border)
	Deallocates the Border from memory.

int	sista_printFieldWithBorder (FieldHandler_t field, BorderHandler_t border)
	Prints the field with the specified border.

int	sista_printSwappableFieldWithBorder (SwappableFieldHandler_t field, BorderHandler_t border)
	Prints the field with the specified border.

PawnHandler_t	sista_createPawnInSwappableField (SwappableFieldHandler_t field, char symbol, ANSISettingsHandler_t settings, struct sista_Coordinates position)
	Creates a Pawn object in a given field.

PawnHandler_t	sista_createPawnInField (FieldHandler_t field, char symbol, ANSISettingsHandler_t settings, struct sista_Coordinates position)
	Creates a Pawn object in a given field.

int	sista_movePawn (FieldHandler_t field, PawnHandler_t pawn, struct sista_Coordinates destination)
	Moves the pawn to a new position.

int	sista_addPawnToSwap (SwappableFieldHandler_t field, PawnHandler_t pawn, struct sista_Coordinates destination)
	Adds the Pawn to a list of pawns to be moved ("swapped") later.

int	sista_applySwaps (SwappableFieldHandler_t field)
	Executes all pending pawn swaps.

int	sista_clearScreen (int spaces)
	Clears the terminal screen and repositions the cursor.

CursorHandler_t	sista_createCursor ()
	Creates a cursor handler.

int	sista_destroyCursor (CursorHandler_t cursor)
	Deallocates the Cursor from memory.

int	sista_moveCursor (CursorHandler_t cursor, enum sista_MoveCursor direction, unsigned short amount)
	Moves the cursor in the specified direction by a given amount.

int	sista_cursorGoTo (CursorHandler_t cursor, unsigned short y, unsigned short x)
	Moves the cursor to the specified coordinates.

int	sista_cursorGoToCoordinates (CursorHandler_t cursor, struct sista_Coordinates coords)
	Moves the cursor to the specified coordinates.

const char *	sista_getVersion ()

int	sista_getVersionMajor ()

int	sista_getVersionMinor ()

int	sista_getVersionPatch ()

int	sista_getLastErrorCode ()
	Returns the last API error code for the current thread.

const char *	sista_getLastErrorMessage ()
	Returns the last API error message for the current thread.

Variables
static thread_local int	sista_last_error_code = SISTA_OK

static thread_local const char *	sista_last_error_message = "ok"

Detailed Description

Implementation of the C API for Sista.

This file contains the implementation of the C API functions declared in api.h. It provides a C-compatible interface to interact with the Sista library, allowing for operations on SwappableField objects.

Author: FLAK-ZOSO

Date: 2025

Version: 3.0.0

Copyright: GNU General Public License v3.0

Function Documentation

◆ sista_addPawnToSwap()

int sista_addPawnToSwap	(	SwappableFieldHandler_t	field,
		PawnHandler_t	pawn,
		struct sista_Coordinates	destination
	)

Adds the Pawn to a list of pawns to be moved ("swapped") later.

Parameters

field	The SwappableField containing the Pawn.
pawn	The Pawn to add to the swap list.
destination	The destination coordinates.

Returns: Status code from enum sista_ErrorCode.

This function adds the specified Pawn to a list of pawns that will be moved (swapped) when sista_executeSwaps is called. The pawn will be moved to the specified destination coordinates.

On failure, this function also updates the per-thread last-error state accessible with sista_getLastErrorCode() and sista_getLastErrorMessage().

Return values

SISTA_OK	If the pawn was successfully added to the swap list.
SISTA_ERR_NULL_FIELD	If `field` is `NULL`.
SISTA_ERR_NULL_PAWN	If `pawn` is `NULL`.
SISTA_ERR_OUT_OF_BOUNDS	If the destination is out of bounds.
SISTA_ERR_OCCUPIED	If the destination is occupied or invalid.
SISTA_ERR_UNKNOWN	If adding the pawn to the swap list failed for another reason.

See also: sista::SwappableField::addPawnToSwap

◆ sista_applyANSISettings()

int sista_applyANSISettings ( ANSISettingsHandler_t settings )

Applies the ANSI settings to the terminal.

Parameters

settings The ANSISettings to apply.

Returns: Status code from enum sista_ErrorCode.

This function applies the specified ANSI settings to the terminal by outputting the corresponding ANSI escape codes to standard output.

See also: sista::ANSISettings::apply

Return values

SISTA_OK	On success.
SISTA_ERR_NULL_SETTINGS	If `settings` is `NULL`.

◆ sista_applySwaps()

int sista_applySwaps ( SwappableFieldHandler_t field )

Executes all pending pawn swaps.

Parameters

field The SwappableField containing the pawns to swap.

Returns: Status code from enum sista_ErrorCode.

This function executes all pending pawn swaps that have been added using sista_addPawnToSwap. It attempts to move each pawn to its specified destination, handling any conflicts or errors that arise.

Note: The swaps that cannot be applied (due to more than one pawn trying to move to the same destination, generally) are skipped.

Todo:: In future versions, the function may return a list of the swaps that could not be applied.

On failure, this function also updates the per-thread last-error state accessible with sista_getLastErrorCode() and sista_getLastErrorMessage().

Return values

SISTA_OK	If all possible (read note) swaps were successful.
SISTA_ERR_NULL_FIELD	If `field` is `NULL`.
SISTA_ERR_UNKNOWN	If executing swaps failed for another reason.

See also: sista::SwappableField::applySwaps

◆ sista_clear_last_error()

static void sista_clear_last_error ( )

static

◆ sista_clearScreen()

int sista_clearScreen ( int spaces )

Clears the terminal screen and repositions the cursor.

Parameters

spaces Non-zero to clear visible content and scrollback buffer; zero to only move the cursor to the top-left corner.

Returns: Status code from enum sista_ErrorCode.

This is the C API counterpart of sista::clearScreen(bool).

See also: sista::clearScreen

Return values

SISTA_OK On success.

◆ sista_createANSISettings()

ANSISettingsHandler_t sista_createANSISettings	(	enum	sista_ForegroundColor,
		enum	sista_BackgroundColor,
		enum	sista_Attribute
	)

Creates an ANSISettings object.

Parameters

fgColor	The foreground color (predefined).
bgColor	The background color (predefined).
attribute	The text attribute to apply.

Returns: A handler to the created ANSISettings object.

This function allocates and initializes a new ANSISettings object. It returns a pointer that can be used to reference the ANSISettings in subsequent API calls.

Return values

NULL	If memory allocation fails.

Warning: The caller is responsible for managing the lifetime of the returned ANSISettings object, including deallocation if necessary.

See also: sista::ANSISettings; sista_destroyANSISettings

◆ sista_createANSISettingsRGB()

ANSISettingsHandler_t sista_createANSISettingsRGB	(	struct sista_RGBColor	fgColor,
		struct sista_RGBColor	bgColor,
		sista_Attribute	attribute
	)

◆ sista_createBorder()

BorderHandler_t sista_createBorder	(	char	symbol,
		ANSISettingsHandler_t	settings
	)

Creates a Border object.

Parameters

symbol	The character symbol for the border brick.
settings	The ANSISettings to apply to the border brick.

Returns: A handler to the created Border object.

This function allocates and initializes a new Border object with the specified symbol and ANSI settings. It returns a pointer that can be used to reference the Border in subsequent API calls.

Return values

NULL	If memory allocation fails.

Warning: The caller is responsible for managing the lifetime of the returned Border object, including deallocation if necessary.

See also: sista::Border; sista_destroyBorder

◆ sista_createCursor()

CursorHandler_t sista_createCursor ( )

Creates a cursor handler.

Returns: A handler to the created Cursor object.

This function allocates and initializes a new Cursor object. It returns a pointer that can be used to reference the Cursor in subsequent API calls.

Return values

NULL	If memory allocation fails.

Warning: The caller is responsible for managing the lifetime of the returned Cursor object, including deallocation if necessary.

See also: sista::Cursor

◆ sista_createField()

FieldHandler_t sista_createField	(	size_t	width,
		size_t	height
	)

Creates a Field with the specified width and height.

Parameters

width	The width of the Field.
height	The height of the Field.

Returns: A handler to the created Field.

This function allocates and initializes a new Field object with the given dimensions. It returns a pointer that can be used to reference the Field in subsequent API calls.

Return values

NULL	If memory allocation fails.

Warning: The caller is responsible for managing the lifetime of the returned Field object, including deallocation if necessary.

See also: Field

◆ sista_createPawnInField()

PawnHandler_t sista_createPawnInField	(	FieldHandler_t	field,
		char	symbol,
		ANSISettingsHandler_t	settings,
		struct sista_Coordinates	position
	)

Creates a Pawn object in a given field.

Parameters

field	The Field to add the pawn to.
symbol	The character symbol for the pawn.
settings	The ANSISettings to apply to the pawn.
position	The initial position of the pawn.

Returns: A handler to the created Pawn object.

This function allocates and initializes a new Pawn object with the specified symbol, ANSI settings, and initial position. It returns a pointer that can be used to reference the Pawn in subsequent API calls.

Return values

NULL	If creation fails for any reason.

Warning: Unlike with other objects, the caller is NOT responsible for managing the lifetime of the returned Pawn object. Pawns are managed by the Field they are added to, and will be deallocated when the Field is destroyed.

Note: On failure, call sista_getLastErrorCode() and sista_getLastErrorMessage() for details.

See also: sista::Pawn; sista_destroyPawn

◆ sista_createPawnInSwappableField()

PawnHandler_t sista_createPawnInSwappableField	(	SwappableFieldHandler_t	field,
		char	symbol,
		ANSISettingsHandler_t	settings,
		struct sista_Coordinates	position
	)

Creates a Pawn object in a given field.

Parameters

field	The SwappableField to add the pawn to.
symbol	The character symbol for the pawn.
settings	The ANSISettings to apply to the pawn.
position	The initial position of the pawn.

Returns: A handler to the created Pawn object.

This function allocates and initializes a new Pawn object with the specified symbol, ANSI settings, and initial position. It returns a pointer that can be used to reference the Pawn in subsequent API calls.

Return values

NULL	If creation fails for any reason.

Warning: Unlike with other objects, the caller is NOT responsible for managing the lifetime of the returned Pawn object. Pawns are managed by the SwappableField they are added to, and will be deallocated when the SwappableField is destroyed.

Note: On failure, call sista_getLastErrorCode() and sista_getLastErrorMessage() for details.

See also: sista::Pawn; sista_destroyPawn

◆ sista_createSwappableField()

SwappableFieldHandler_t sista_createSwappableField	(	size_t	width,
		size_t	height
	)

Creates a SwappableField with the specified width and height.

Parameters

width	The width of the SwappableField.
height	The height of the SwappableField.

Returns: A handler to the created SwappableField.

This function allocates and initializes a new SwappableField object with the given dimensions. It returns a pointer that can be used to reference the SwappableField in subsequent API calls.

Return values

NULL	If memory allocation fails.

Warning: The caller is responsible for managing the lifetime of the returned SwappableField object, including deallocation if necessary.

See also: SwappableField

◆ sista_cursorGoTo()

int sista_cursorGoTo	(	CursorHandler_t	cursor,
		unsigned short	y,
		unsigned short	x
	)

Moves the cursor to the specified coordinates.

Parameters

cursor	The Cursor handler.
y	The y coordinate (row).
x	The x coordinate (column).

Returns: Status code from enum sista_ErrorCode.

This function moves the terminal cursor to the specified (y, x) coordinates using ANSI escape codes.

See also: sista::Cursor::goTo

Return values

SISTA_OK	On success.
SISTA_ERR_NULL_CURSOR	If `cursor` is `NULL`.

◆ sista_cursorGoToCoordinates()

int sista_cursorGoToCoordinates	(	CursorHandler_t	cursor,
		struct sista_Coordinates	coords
	)

Moves the cursor to the specified coordinates.

Parameters

cursor	The Cursor handler.
coords	The coordinates struct containing y and x.

Returns: Status code from enum sista_ErrorCode.

This function moves the terminal cursor to the specified (y, x) coordinates using ANSI escape codes.

See also: sista::Cursor::goTo

Return values

SISTA_OK	On success.
SISTA_ERR_NULL_CURSOR	If `cursor` is `NULL`.

◆ sista_destroyANSISettings()

int sista_destroyANSISettings ( ANSISettingsHandler_t settings )

Deallocates the ANSISettings from memory.

Parameters

settings The ANSISettings to delete.

Returns: Status code from enum sista_ErrorCode.

This function deallocates the ANSISettings from memory through the opaque handler pointing to it.

See also: sista::ANSISettings; sista_createANSISettings

Return values

SISTA_OK	On success.
SISTA_ERR_NULL_SETTINGS	If `settings` is `NULL`.

◆ sista_destroyBorder()

int sista_destroyBorder ( BorderHandler_t border )

Deallocates the Border from memory.

Parameters

border The Border to delete.

Returns: Status code from enum sista_ErrorCode.

This function deallocates the Border from memory through the opaque handler pointing to it.

See also: sista::Border; sista_createBorder

Return values

SISTA_OK	On success.
SISTA_ERR_NULL_BORDER	If `border` is `NULL`.

◆ sista_destroyCursor()

int sista_destroyCursor ( CursorHandler_t cursor )

Deallocates the Cursor from memory.

Parameters

cursor The Cursor to delete.

Returns: Status code from enum sista_ErrorCode.

This function deallocates the Cursor from memory through the opaque handler pointing to it.

See also: sista::Cursor; sista_createCursor

Return values

SISTA_OK	On success.
SISTA_ERR_NULL_CURSOR	If `cursor` is `NULL`.

◆ sista_destroyField()

int sista_destroyField ( FieldHandler_t field )

Deallocates the Field from memory.

Parameters

field The Field to delete

Returns: Status code from enum sista_ErrorCode.

This function deallocates the Field from memory through the opaque handler pointing to it.

See also: Field

Return values

SISTA_OK	On success.
SISTA_ERR_NULL_FIELD	If `field` is `NULL`.

◆ sista_destroySwappableField()

int sista_destroySwappableField ( SwappableFieldHandler_t field )

Deallocates the SwappableField from memory.

Parameters

field The SwappableField to delete

Returns: Status code from enum sista_ErrorCode.

This function deallocates the SwappableField from memory through the opaque handler pointing to it.

See also: SwappableField

Return values

SISTA_OK	On success.
SISTA_ERR_NULL_FIELD	If `field` is `NULL`.

◆ sista_getLastErrorCode()

int sista_getLastErrorCode ( )

Returns the last API error code for the current thread.

This value is updated by API functions that expose failure diagnostics, including functions that return NULL and functions that return a status code from enum sista_ErrorCode.

Successful calls participating in this model reset the value to SISTA_OK.

Returns: One value from enum sista_ErrorCode.

◆ sista_getLastErrorMessage()

const char * sista_getLastErrorMessage ( )

Returns the last API error message for the current thread.

The returned pointer remains valid until the next API call on the same thread that updates the last-error state.

Successful calls participating in this model reset the message to "ok". Call this function immediately after a failing API call to read diagnostics.

Returns: A static, null-terminated message string.

◆ sista_getVersion()

const char * sista_getVersion ( )

◆ sista_getVersionMajor()

int sista_getVersionMajor ( )

◆ sista_getVersionMinor()

int sista_getVersionMinor ( )

◆ sista_getVersionPatch()

int sista_getVersionPatch ( )

◆ sista_moveCursor()

int sista_moveCursor	(	CursorHandler_t	cursor,
		enum	sista_MoveCursor,
		unsigned short	amount
	)

Moves the cursor in the specified direction by a given amount.

Parameters

cursor	The Cursor handler.
direction	The direction to move the cursor.
amount	The number of positions to move the cursor.

Returns: Status code from enum sista_ErrorCode.

This function moves the terminal cursor in the specified direction by the given amount using ANSI escape codes.

See also: sista::Cursor::move

Return values

SISTA_OK	On success.
SISTA_ERR_NULL_CURSOR	If `cursor` is `NULL`.

◆ sista_movePawn()

int sista_movePawn	(	FieldHandler_t	field,
		PawnHandler_t	pawn,
		struct sista_Coordinates	destination
	)

Moves the pawn to a new position.

Parameters

field	The Field containing the Pawn.
pawn	The Pawn to move.
destination	The destination coordinates.

Returns: Status code from enum sista_ErrorCode.

On failure, this function also updates the per-thread last-error state accessible with sista_getLastErrorCode() and sista_getLastErrorMessage().

Return values

SISTA_OK	If the move was successful.
SISTA_ERR_NULL_FIELD	If `field` is `NULL`.
SISTA_ERR_NULL_PAWN	If `pawn` is `NULL`.
SISTA_ERR_OUT_OF_BOUNDS	If the destination is out of bounds.
SISTA_ERR_OCCUPIED	If the destination is occupied or invalid.
SISTA_ERR_UNKNOWN	If the move failed for another reason.

See also: sista::Field::movePawn

◆ sista_printField()

int sista_printField	(	FieldHandler_t	field,
		char	border
	)

Prints the specified Field with a given border.

Parameters

field	The Field.
border	The border character to use.

Returns: Status code from enum sista_ErrorCode.

This function prints the entire field to the terminal, using the specified character as the border around the field.

See also: Field; Border

Return values

SISTA_OK	On success.
SISTA_ERR_NULL_FIELD	If `field` is `NULL`.

◆ sista_printFieldWithBorder()

int sista_printFieldWithBorder	(	FieldHandler_t	field,
		BorderHandler_t	border
	)

Prints the field with the specified border.

Parameters

field	The Field to print.
border	The Border to print.

Returns: Status code from enum sista_ErrorCode.

This function prints the entire field to the terminal, using the specified Border object to draw the border around the field.

See also: sista::Border::print; sista::Field::print

Return values

SISTA_OK	On success.
SISTA_ERR_NULL_FIELD	If `field` is `NULL`.
SISTA_ERR_NULL_BORDER	If `border` is `NULL`.

◆ sista_printSwappableField()

int sista_printSwappableField	(	SwappableFieldHandler_t	field,
		char	border
	)

Prints the specified Field with a given border.

Parameters

field	The SwappableField.
border	The border character to use.

Returns: Status code from enum sista_ErrorCode.

This function prints the entire field to the terminal, using the specified character as the border around the field.

See also: Field; Border

Return values

SISTA_OK	On success.
SISTA_ERR_NULL_FIELD	If `field` is `NULL`.

◆ sista_printSwappableFieldWithBorder()

int sista_printSwappableFieldWithBorder	(	SwappableFieldHandler_t	field,
		BorderHandler_t	border
	)

Prints the field with the specified border.

Parameters

field	The SwappableField to print.
border	The Border to print.

Returns: Status code from enum sista_ErrorCode.

This function prints the entire field to the terminal, using the specified Border object to draw the border around the field.

See also: sista::Border::print; sista::Field::print

Return values

SISTA_OK	On success.
SISTA_ERR_NULL_FIELD	If `field` is `NULL`.
SISTA_ERR_NULL_BORDER	If `border` is `NULL`.

◆ sista_resetAnsi()

int sista_resetAnsi ( )

Resets ANSI settings to default.

Returns: Status code from enum sista_ErrorCode.

This function resets the terminal's ANSI settings, including colors and attributes, to their default values.

See also: sista::resetAnsi

Return values

SISTA_OK On success.

◆ sista_resetAttribute()

int sista_resetAttribute ( enum sista_Attribute )

Resets a text attribute.

Parameters

attribute The text attribute to reset.

Returns: Status code from enum sista_ErrorCode.

This function resets a text attribute, such as bold or underline, specified in the sista_Attribute enumeration. It outputs the corresponding ANSI escape code to standard output.

See also: sista_Attribute; sista::resetAttribute

Return values

SISTA_OK On success.

◆ sista_set_last_error()

static void sista_set_last_error	(	int	code,
		const char *	message
	)

static

◆ sista_setAttribute()

int sista_setAttribute ( enum sista_Attribute )

Sets a text attribute.

Parameters

attribute The text attribute to set.

Returns: Status code from enum sista_ErrorCode.

This function sets a text attribute, such as bold or underline, specified in the sista_Attribute enumeration. It outputs the corresponding ANSI escape code to standard output.

See also: sista_Attribute; sista::setAttribute

Return values

SISTA_OK On success.

◆ sista_setBackgroundColor()

int sista_setBackgroundColor ( enum sista_BackgroundColor )

Sets the background color using a predefined color.

Parameters

color The predefined background color to set.

Returns: Status code from enum sista_ErrorCode.

This function sets the terminal's background color to one of the predefined colors specified in the sista_BackgroundColor enumeration. It outputs the corresponding ANSI escape code to standard output.

See also: sista_BackgroundColor; sista::setBackgroundColor

Return values

SISTA_OK On success.

◆ sista_setBackgroundColorRGB()

int sista_setBackgroundColorRGB ( const struct sista_RGBColor * color )

Sets the background color using an RGB color.

Parameters

color A pointer to a sista_RGBColor struct defining the color.

Returns: Status code from enum sista_ErrorCode.

This function sets the terminal's background color using the RGB components specified in the provided sista_RGBColor struct. It outputs the corresponding ANSI escape code to standard output.

Return values

SISTA_OK	On success.
SISTA_ERR_NULL_COLOR	If `color` is `NULL`.

See also: sista_RGBColor; sista::setBackgroundColor

◆ sista_setForegroundColor()

int sista_setForegroundColor ( enum sista_ForegroundColor )

Sets the foreground color using a predefined color.

Parameters

color The predefined foreground color to set.

Returns: Status code from enum sista_ErrorCode.

This function sets the terminal's foreground color to one of the predefined colors specified in the sista_ForegroundColor enumeration. It outputs the corresponding ANSI escape code to standard output.

See also: sista_ForegroundColor; sista::setForegroundColor

Return values

SISTA_OK On success.

◆ sista_setForegroundColorRGB()

int sista_setForegroundColorRGB ( const struct sista_RGBColor * color )

Sets the foreground color using an RGB color.

Parameters

color A pointer to a sista_RGBColor struct defining the color.

Returns: Status code from enum sista_ErrorCode.

This function sets the terminal's foreground color using the RGB components specified in the provided sista_RGBColor struct. It outputs the corresponding ANSI escape code to standard output.

Return values

SISTA_OK	On success.
SISTA_ERR_NULL_COLOR	If `color` is `NULL`.

See also: sista_RGBColor; sista::setForegroundColor

Variable Documentation

◆ sista_last_error_code

thread_local int sista_last_error_code = SISTA_OK

static

◆ sista_last_error_message

thread_local const char* sista_last_error_message = "ok"

static

Functions

Variables

Detailed Description

Function Documentation

◆ sista_addPawnToSwap()

◆ sista_applyANSISettings()

◆ sista_applySwaps()

◆ sista_clear_last_error()

◆ sista_clearScreen()

◆ sista_createANSISettings()

◆ sista_createANSISettingsRGB()

◆ sista_createBorder()

◆ sista_createCursor()

◆ sista_createField()

◆ sista_createPawnInField()

◆ sista_createPawnInSwappableField()

◆ sista_createSwappableField()

◆ sista_cursorGoTo()

◆ sista_cursorGoToCoordinates()

◆ sista_destroyANSISettings()

◆ sista_destroyBorder()

◆ sista_destroyCursor()

◆ sista_destroyField()

◆ sista_destroySwappableField()

◆ sista_getLastErrorCode()

◆ sista_getLastErrorMessage()

◆ sista_getVersion()

◆ sista_getVersionMajor()

◆ sista_getVersionMinor()

◆ sista_getVersionPatch()

◆ sista_moveCursor()

◆ sista_movePawn()

◆ sista_printField()

◆ sista_printFieldWithBorder()

◆ sista_printSwappableField()

◆ sista_printSwappableFieldWithBorder()

◆ sista_resetAnsi()

◆ sista_resetAttribute()

◆ sista_set_last_error()

◆ sista_setAttribute()

◆ sista_setBackgroundColor()

◆ sista_setBackgroundColorRGB()

◆ sista_setForegroundColor()

◆ sista_setForegroundColorRGB()

Variable Documentation

◆ sista_last_error_code

◆ sista_last_error_message
